Eikona series · Model EK01
Eikona Series – EK01
Smart lock with 3D face recognition and radar sensor
The Eikona EK01 is a galvanised zinc alloy smart lock that opens with 3D face recognition, fingerprint, keypad code, IC card, mechanical key or from the Tuya app. Face recognition works between 30 and 120cm, with an optimum distance of 50cm, and infrared recording captures visitors even at night. A radar sensor detects presence in front of the door; the rechargeable lithium battery has a capacity of 4200mah.
- Several unlocking methods
- Anti-peep code

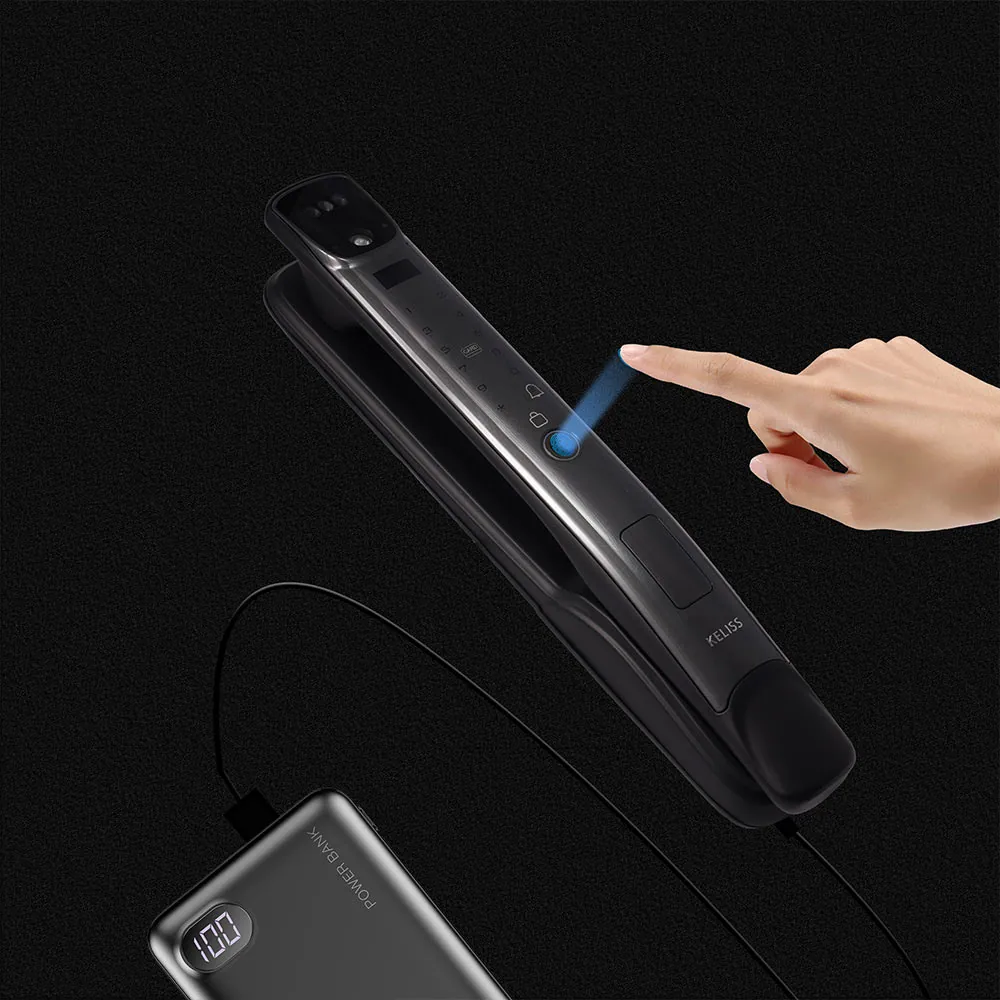

- USB Type-C port and mechanical keys for opening with a flat battery
- Infrared recording
- 3D face recognition
- Digital peephole
- Radar presence sensor
- Doorbell
- Automatic locking
- One-touch locking
- One-time codes
- Touchscreen that wakes on touch
- Alarm after incorrect unlocking attempts
- Anti-tamper alarm
- Low-battery warning
- Long-life battery
Technical specifications
Materials and finishes
- Material
- Galvanised zinc alloy
- Colour
- Black
Unlocking and access
- Fingerprint sensor
- Semiconductor
- Unlocking methods
- IC card, keypad code, fingerprint, mechanical key, remote control from app, face recognition
- Face recognition distance
- 30 - 120cm (optimum distance: 50cm)
- App
- Tuya
- Administrators
- 10
- Users
- 90
- Memory capacity
- 50 fingerprints, 100 codes, 100 IC cards, 100 faces
- False acceptance rate
- ≤ 0.001% (fingerprint); < 0.00001% (face recognition)
- Voice guidance
- No
Installation

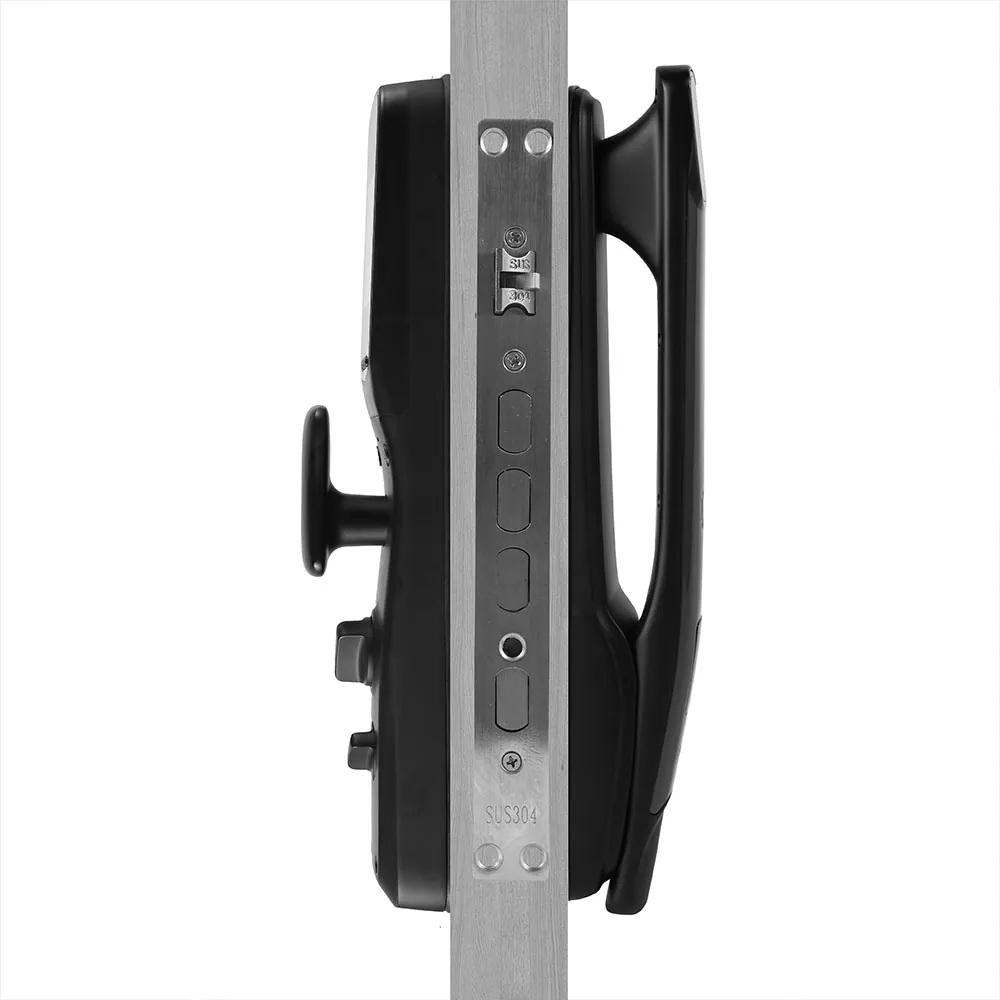

- Lock body
- 6068
- Lock body material
- 304 stainless steel
- Door type
- All doors except glass doors
- Door thickness
- 40-120mm
Power supply and operating conditions
- Operating voltage
- DC 6.9V - 8.4V
- Power supply
- 4200mah rechargeable lithium battery
- Operating temperature
- -20℃ - 60℃
- Operating humidity
- 20% - 90% RH
Packaging
- Package dimensions
- 490 x 260 x 115mm
- Package weight
- 4.2kg
Documents
The other models in the series
What changes compared with the Eikona Series – EK01, according to the manufacturer's data sheets.
- Eikona Series – EK06In addition: intercomPower supply 5000 mAh rechargeable lithium battery; material aluminium alloy
