Pathos series · Model PT003
Pathos Series – PT003
Fingerprint smart padlock with IP65 protection

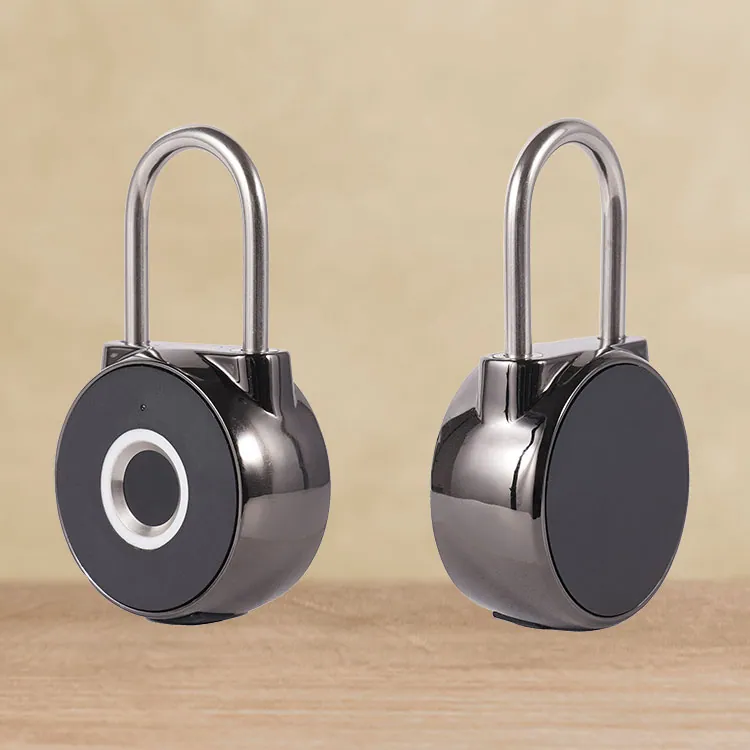

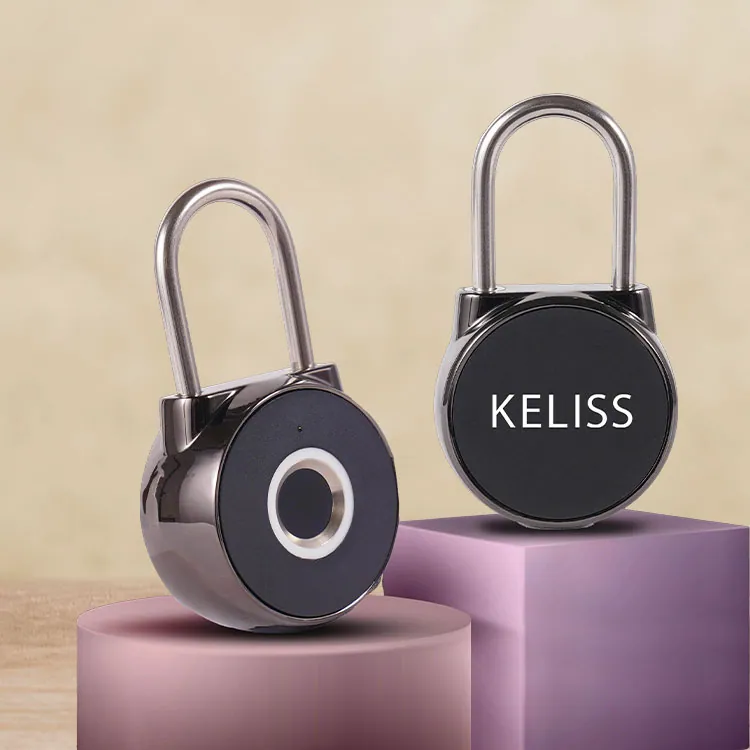

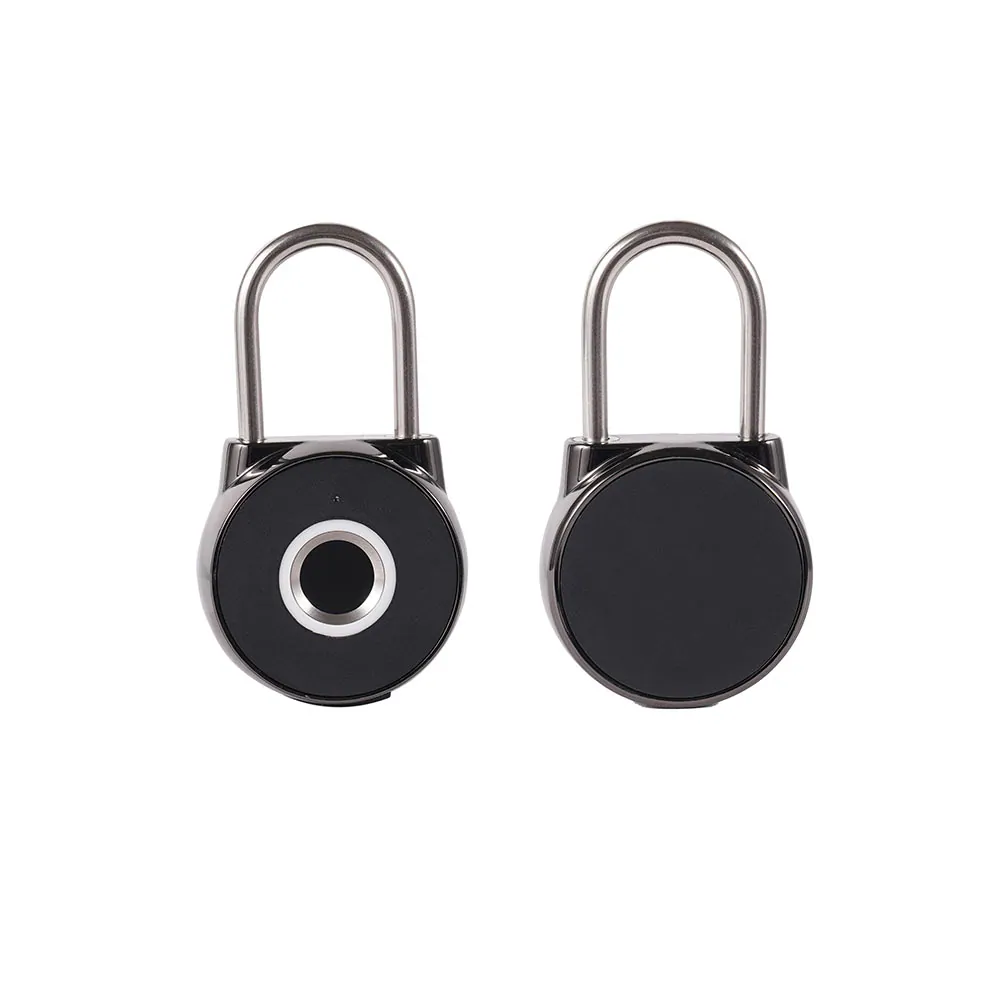

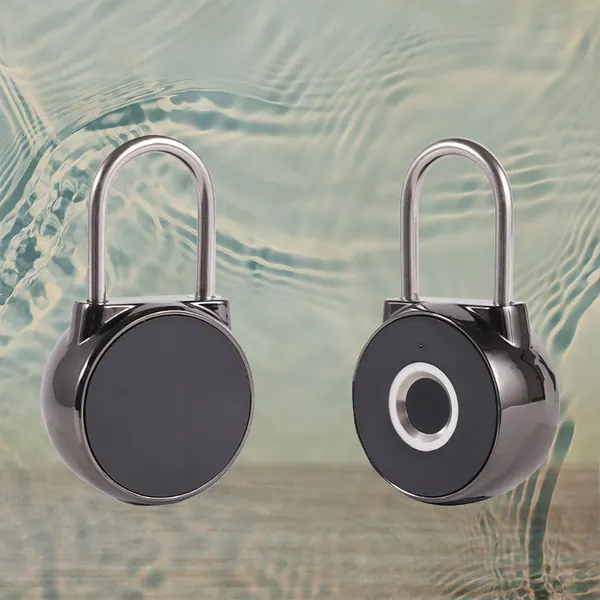

The Pathos PT003 is a zinc alloy smart padlock with a carbon steel shackle and IP65 protection that opens with a fingerprint and stores up to 10 of them. The sensor recognises the finger even when wet, the battery is recharged from the USB Type-C port and the padlock works between -15°C and 60°C.
- High-precision fingerprint sensor

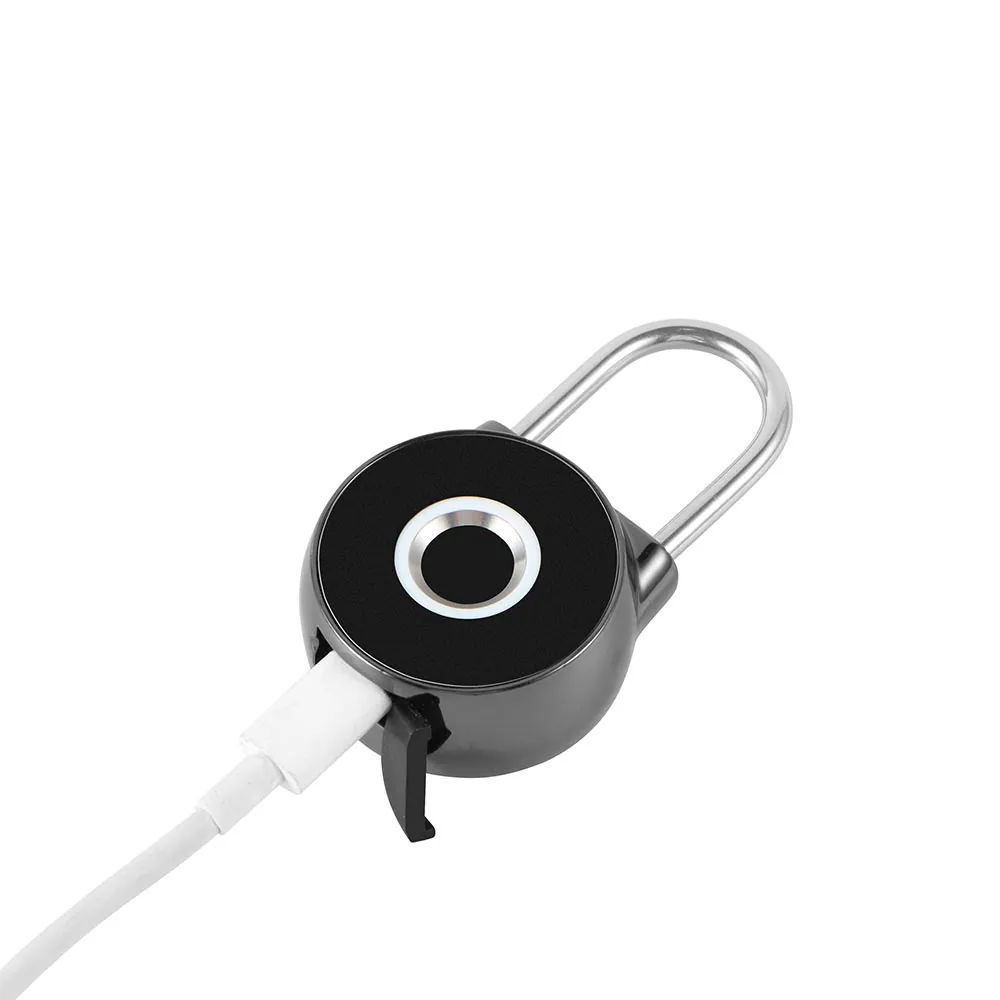

- USB Type-C port for charging when the battery is flat
- Operating temperature: -15°C - 60°C
- Long-life rechargeable battery

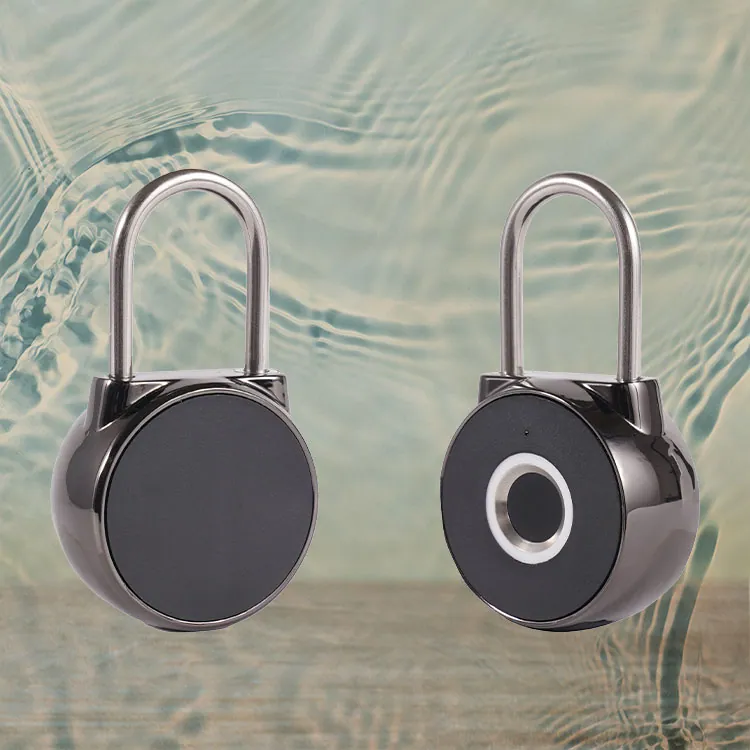

- IP65 water protection
- Low-battery warning
Technical specifications
Materials and finishes
- Material
- Zinc alloy
- Colour
- Black
- Shackle material
- Carbon steel
Unlocking and access
- Unlocking methods
- Fingerprint
- Fingerprints stored
- 10
- False acceptance rate
- < 0.001%
Installation
- Lock body material
- 304 stainless steel
- Uses
- Lockers, gates and fences, toolboxes, luggage and travel bags, bicycles (with chains or cables), lockable cupboards
Power supply and operating conditions
- Protection rating
- IP65
- Operating voltage
- DC5V
- Power supply
- Charging from the USB Type-C port
- Operating temperature
- -15°C - 60°C

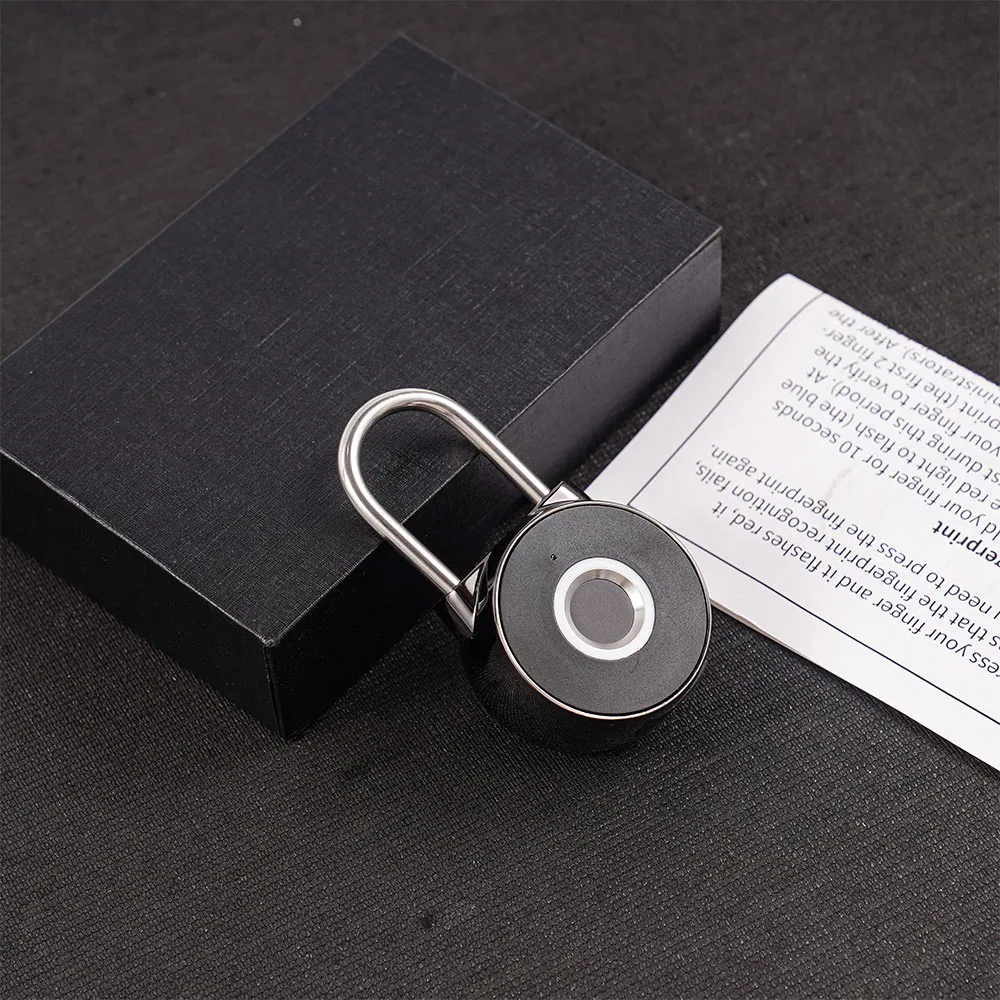

Packaging
- Package dimensions
- 118x 72x 28mm
- Package weight
- 142g
Documents
The other models in the series
What changes compared with the Pathos Series – PT003, according to the manufacturer's data sheets.
- Pathos Series – PT001Protection rating IP22
- Pathos Series – PT002Protection rating IP54; material zinc alloy with carbon steel plating
